backup Fast + furious tv open atv 6.1

lee benson

Member
hi guys this is my backup for zgemma h2s just plain and simple
openatv 6.1

ok guys this work a lot better for me running IPTV WITH a script

it dont freeze lock up on channels like it did on 6.0 try it see what u think
thanks for looking guys


new update guys 16/3/2018 i know some have been asking so here u go

epg
import
auto bouguets maker
kiddic slyk1hd 5.223
iptv bonguets maker 7.3 the newest 1 :(y):

sky.jpg 1_0_19_22CF_80D_2_11A0000_0_0_0 (1).jpg 1_0_19_22CF_80D_2_11A0000_0_0_0 (2).jpg View attachment 24882 skin.jpg 1_0_19_22CF_80D_2_11A0000_0_0_0 (3).jpg 1_0_19_22CF_80D_2_11A0000_0_0_0 (1).jpg 1_0_19_22CF_80D_2_11A0000_0_0_0 (2).jpg View attachment 24882






Customised boot/reboot screens













THIS IS taken from suls site FOR IPTV COULDENT GET EASYER EITHER RUN THE IPTV SCRIPT OR JUST PUT YOUR (PASSWORD -USER) IN THE suls iptv bonguets maker 7.3 in the plugins

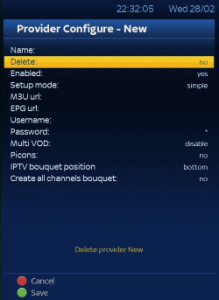

Configuration


Start the plugin and then select configure to set general options



Select providers to configure providers



Press the green button add a new provider or press ok to edit an existing provider



Enter at least the name and press green to save. For entering long urls instead of using the remote control it is recommended to edit the config file
Instructions:

Before you flash make sure both coax cables from the dish are connected to the correct ports, as show below


cables should be diagonal as you look at them not one on top of the other and not side by side.


2wGFJ4HW


before u flash make sure all SD CARD/FLASH DRIVES ARE REMOVED

To Flash...

1) Extract the downloaded file and copy the zgemma folder to your fat32 formatted usb drive.
2) Turn off your zgemma box using the rear on/off switch as shown above.
3) Insert your USB pen drive in the rear port of your zgemma.
4) Power up the box, when USB is displayed press the front power switch, the display will change to FL5H (Flash!) allow it to boot up – This should take between 3 to 10 minutes

NB If the box boots straight up without flashing it's usually down to a usb drive formatting / partition issue (please search the forum for hddguru as this has been asked loads of times!)


Once flashing is complete the box will display BOOT, turn off using the rear power switch and remove your USB drive that has the zgemma folder on it, either delete this folder on your PC or give it a quick format if you are going to use this same drive in the box permanently, alternatively remove and insert your second USB pen drive.


Steps to take after flashing....


1) Initialise your USB pen drive or SDCARD .....(BLUE Button, scroll down to Hardisk, Initialisation) then (Convert Ext3 to Ext4)

2) Now check it's mounted.... (Mounts, Device Manager, GREEN Button, BLUE Button, Exit on remote then RED button)

3) Add your line.....
You will need the IP address of your box - to find out what this is.... (BLUE Button, scroll down to Network and select Network Interface) Make a note of this!

You will now add nline details into the existing files as detailed below using an FTP client (eg Filezilla or DCC). For your FTP client you will need the IP address as noted above, the user is ROOT and leave the password field empty.

For Clines u will need to add cccam.2.13 witch is easy loads of guides about on techkings

For Nlines a newcamd.list list file is in the /usr/keys directory ready for you to edit. along with mg.cfg press the BLUE button and go into Softcam Panel then press the right direction key on your remote until mgcamd138r is displayed)

Once done reboot the box (MENU, Standby / Restart, Restart)

If you need any further help with adding your line look/ask in the forum. (To use other softcams BLUE, Softcam, Softcam Panel). Some lines also need to have the router restarted.

4) If your box is a Zgemma h.2S and you have two cables coming from your sat dish skip to 5).
If you have a Zgemma HS, H2H or H2s you need to reconfigure tuner B otherwise you will get a tuner lock error on the next step. To do this press BLUE then go to tuner setup, tuner configuration - if you have a hS or you're running a h2S with one cable from the dish set tuner B to none, if you have a H2H/H2S set your second tuner here.

5) Scan for channels...... (go and make a coffee this takes a while! but you only have to do this one time!)
(Menu, Setup, Service Searching, Automatic Scan, Green)

6) Now to change to your local region.....
(Menu, Setup, Service Searching, AutoBouquetsMaker, AutoBouquetsMaker Providers and scroll down and change where it's currently set as Granada-custom to yourtvregion-custom then press GREEN)

7) Create your Autobouquets
(MENU, Setup, Service Searching, AutoBouquetsMaker, Delete bouquets, Yes, Start Scan)

8) Create USB swapfile - 256mb
(MENU, Infopanel, Plugins, SwapManager, GREEN, Select your drive, 256Mb, takes a couple of mins to create, once created choose RED to activate and YELLOW to autostart, then exit)

9) Restart box - (MENU, Standby / Restart, Restart)


hope this helps u out guys but as stated above ''''''' this is just a bare borns setup image thanks to kiddac and techkings and other users so thanks
and if u get stuck theres plenty of good guys on the site to help u

http://www.mediafire.com/file/b66nvmuz9f8dk1e/zgemma.rar




Attachments

  • 1_0_19_22CF_80D_2_11A0000_0_0_0.jpg
    77.1 KB · Views: 605
Last edited:
so why did you no just scan for channel?
as that takes 20 odd mins
just saves people doing it


then if your making it just for iptv
all you need is an epgimporter

now with all sly down now u mite as well scan fta unless on vermin ha ha THATS Y LOL

and u dont even need epgimport with my supplier to run a script as it install for u

thanks for your imput siilver
and yes its just for iptv as 6.0 atv was crap for me and 6.1 runs like a dream

I've given this build a go.... thanks. The only thing that's bugging me is the "audio description" . it's active up each time I restart the box ,despite me disabling it with the audio button. :(

Try this m8

Menu > Setup > Audio > Auto Language Selection

Select your Audio Language 1 - English
Select your Audio Language 2 - None
Select your Audio Language 3 - None
Select your Audio Language 4 - None
Set Prefer AC3 to Yes
Set Prefer Audio Stream Stored by Service to No

Are you folks running IPTV alongside your Sat Channels? I've recently loaded up IPTV via an enigma script. I've noticed now that its messed up my epg presumably as channels are now duplicated across the various bouquets. I'm running whoosbuild but will give this build a try when I get in later.

Are you folks running IPTV alongside your Sat Channels? I've recently loaded up IPTV via an enigma script. I've noticed now that its messed up my epg presumably as channels are now duplicated across the various bouquets. I'm running whoosbuild but will give this build a try when I get in later.
Yes I'm running iptv and sat on this with no epg problems

Updated my extensions and now epgimport won't work it says "epgimport cannot import name selectionpng" tried removing the plugin, restarted box and reinstalling but still not working... Any have the same issue?

Anyway to get the epg to show separate tabs across the top? i.e movies sports etc
hi m8 u need to go to kiddics site google search will find it

Sky EPG Bouquet Tabs + Coloured Button Amends

This modification changes the coloured buttons on EPG to function as Options/Recordings/-24 Hours/+24 Hours.
It also brings in the Bouquets tab along the top of the EPG for skins that include this function. Currently Slyk1HD and VSkins

Please follow instructions carefully.
This is overwriting a default component on your box.
Incorrect install could brick your image.
** Disclaimer you install this at your own risk **


1. First Install latest version of my skin from my skin folder

2. Download EPGSelection.py from this folder.

3. Navigate to /usr/lib/enigma2/python/Screens

4. In case of incorrect install make a copy of EPGSelection.pyo and keep it somewhere safe.

5. Delete existing EPGSelection.pyo

6. Upload new EPGSelection.py to /usr/lib/enigma2/python/Screens

7. Amend the extras.xml of this skin that can be located on your box here /usr/share/enigma2/[skin name]

7. Do a full reboot.

Hi ALL
I have vu+ultimo4k running bh 3.04 image.
Tried using e-chanliser program by editing my HD channel list with putting the none NAR audio pids obtained from lynsat.
but did not work
Any one has any idea's help
Thank you in advance

hi trying it out now lol new to this so 2 questions please, no were to put cams list ??is it a soft cam software I need. and clock on front panel just says 00 installed atv 6.1 then this on top am I bad lol,,,or just s**t at it got to lean some where.. thx for any help..

Last edited:
I have been using this image and have updated it fairly regularly, last updated it on 16.10.17, tried to update it today and it showed 184 updates available with a warning saying update may not work, and true to word it broke my box, after update, reboot its stuck on 49 percent... Any idea what's wrong with the latest update.....
