Dsayers Zgemma H2H OpenATV 6 Series V2.00

Dsayers OpenAtv for zgemma H.2H

  1. dsayers2014
    Dsayers Openatv 6 series for the zgemma H2.H with Kiddacs VSkin HD with slyk1hd set it as your skin
    And mgcamd1.38 and cccam2.30 with setup guide


    this backup has been set to generate one set of bouquets by replacing the non-available
    sky hd channels with vm hd channels so the channel numbers will be the same as sky 106 sky 1hd and 107 is sky living hd

    20/08/2017 V2.00


    Set with mgcamd1.38. & cccam2.3 and with all mg_cfg and newcamd.list and CCcam.cfg files needed in place! Just edit your details in and reboot! DO NOT SEND YOUR FILES IN. EDIT WHATS ALREADY THERE



    OK. Basically u need a usb or hard drive that can be wiped and devoted to the box.
    That will store program guide and recordings and timeshift to rewind TV etc.
    4gb is minimum I'd recommend. But more is better.
    Once image is flashed and u edit ur newcamd.list file in usr/keys or CCcam.cfg in usr/keys with FileZilla.
    Get the permanent USB/hdd onto a PC and quick format it.





    ZGEMMA DISHCABLE'S SETTUP
    Plug one dish cable into tuner A(sat). And the second cable into B(vm).

    [​IMG]


    You will need to blug kenable F Type Screw Connector Socket to RF Coax Aerial Male Adapter to plug into tuner b
    [​IMG]


    Press
    Menu, setup, service searching, Tuner configuration,
    Select Tuner B: and input your network id

    [​IMG]

    Check here for a list of network ids http://www.techkings.org/general-cable-tv/65862-cable-netids.html





    USB/ HARD DRIVE SETUP
    Box off.
    Usb in rear.
    Box on.
    Blue Button
    Harddisk/Harddisk Setup press right
    Initialization choose your device and press red to initialise
    [​IMG]
    then convert ext3 to 4 choose your device and press red to convert ext3 to 4
    [​IMG]

    Creating Swapfile
    I dont think the newer models need a swapfile but if you want to
    MENU, Infopanel, Plugins, SwapManager, GREEN, Select your drive, 256Mb, takes a couple of mins to create, once created choose RED to activate and YELLOW to autostart
    [​IMG]
    restart box not GUI



    Recording and Timeshift settings

    Menu
    Setup
    System
    Recording and Timshift settings
    Recording settings
    Default movie location should be media/hdd/movie
    [​IMG]

    (If u are using a large enough usb/HDD u may want to go to
    Menu
    Setup
    System
    Rexording and timshift settings
    Timeshift settings
    Ensure timeshift location is showing: media/hdd/movie/timesshift
    Autorecord is showing media/hdd/movie
    if you want enable Autorecord
    Autostart ts after 30secs or whatever.
    As it is u must press pause to start timeshift)
    [​IMG]

    If you find that the screen is to large/small/off to side:
    Menu
    Setup
    Usage and GUI
    Extended GUI
    OSD Position
    U can change about here. Including transparency of windows.


    Before running abm we need to download the custommix file

    Menu

    Setup

    Service searching

    Dsayers CustomMix

    Press yellow to fetch file

    View attachment 22534

    TO SETUP ABM

    Menu
    Setup
    Service searching
    Autobouquets maker
    Providers. Wait
    Sky UK: area. Change from northwest Yorkshire HD to your area HD not sd or custom we need HD to swap with cable by pressing right or left.
    [​IMG]

    You may want to go down and change sky uk channel swap to no if you don’t have bbc1hd and ITV hd versions in your area
    Then virgin(uk): area change 41064 York(ff Leeds) to your net id
    [​IMG]
    No need to generate other bouquets
    Green to save.Start scan. Wait, Exit all



    Setting up separate bouquets or just using cable



    If you want to just use sat or cable or have separate bouquets i.e. not mixed this can be done easily


    First, we need to setup your tuner configuration

    Menu

    Setup

    Service Searching

    Tuner Configuration and disable the tuner you’re not going to use Tuner A is sat tuner B is cable go into the tuner you’re not going to use and change it to unconfigured by pressing right. Don’t disable any if you want to use both without the mix


    Now we need to delete the CustomMix file

    Menu

    Setup

    Service Searching

    Dsayers CustomMix

    Press blue to delete file then right to change Enable autofectch to no

    Green to save


    Now we need to setup ABM


    Menu

    Setup

    Service Searching

    AutoBouquetsMaker

    Providers


    If using sat change sky uk area to your area custom by pressing left not not HD or SD



    Then virgin UK area your netid

    Change generate sections bouquets yes and others to yes if you want HD bouquet, FTA bouquet etc


    Green to save


    Go to providers order sky uk is on top if you want virgin first press blue to move sky uk down so virgin uk is on top ps sky uk won’t show if you have only set virgin up

    Green to save then Start scan


    If using virgin only you will need to disable CrossEPG

    Menu, Setup, EPG, CrossEPG

    Press Configure scroll down to Scheduled download and press right to disabled th

    en green to save.



    TO SETUP EPG
    I have set-up crossepg for sat and epgrefresh for cable



    For CrossEPG (sat)

    Green button

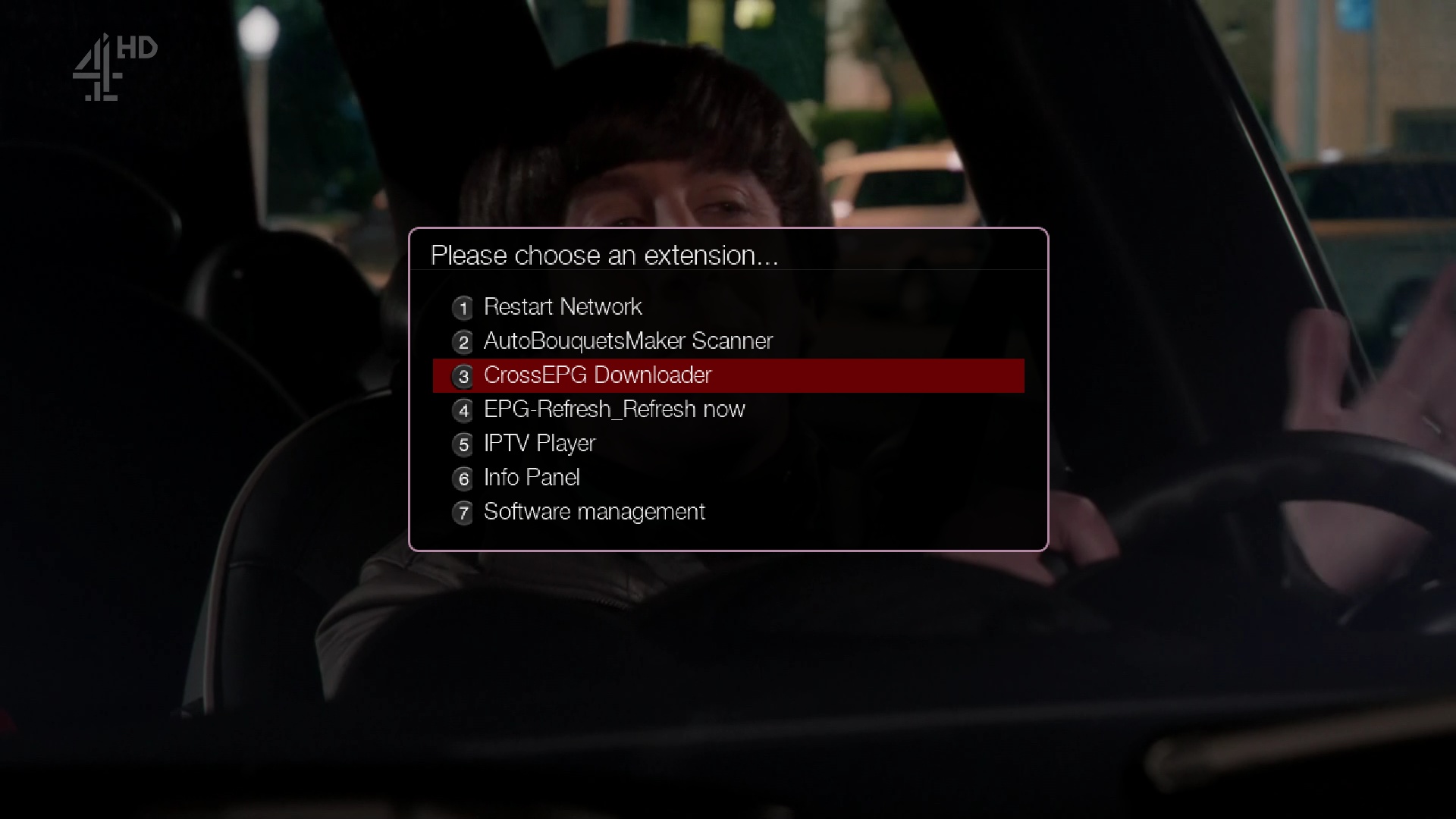

    CrossEPG Downloader
    CrossEPG Downloader.jpg

    Takes 5-10 mins. Happens automatically at 5.00 am anyway.
    Exit all


    For epgrefresh(cable)
    Go to all channels bouquet select the vm previews channel and press the green button then epg refresh now
    [​IMG]


    this is setup to automatically run at 5.40 am.
    This is also set to shut down the box after automatic scan at 5am if you want to change this portal, epgrefresh show advance options yes
    Change shutdown after EPG refresh to no.



    Skins

    V-Skin is already setup with epg tabs and pics in menus changing daily


    slyk1hd included with epg tabs {No Mods} just set it as your skin – menu, setup, usage and gui skin setup


    Chabs SkyQ skin is downloadable via download plugins
    Portal green button to download plugins choose skins scroll down to skyq skin by Chababu


    Extra plugins

    Grogs movie organisor plugin available via download plugins-extentions


    To install picons if you want



    Picons are the little channels logos you see on some screen shots and these instructions guide you through adding them to your EPG and info bars.


    First of all check that you have no previous picons installed and if so remove them


    From full screen TV:
    Press the Portal button -> Red button (remove plugins) -> Highlight +Picons and press OK
    Now any picon lists you see in that section need removing. Highlight, press ok and select yes.
    Once you have removed any existing picon sets exit right back to full screen TV.


    From full screen TV:
    Press the Portal button -> Green button to download plugins -> Highlight +extensions -> Press the OK button


    Scroll right down the list and choose zeggy/help snp picon updater (1.2)

    Reboot box

    Once rebooted
    From full screen TV:
    Press the Portal button
    Choose Zeggy/Help SNP Picon updater

    This takes a little while to download and extract due to there being 7000+ picons and may appear to have crashed. How long it takes will also depend on the speed of your USB device. While you are waiting be patient wait and wait some more.
    When you are returned to the menu, Press the Exit button twice to return to full screen TV


    Now press your EPG button and in the top left hand corner your should see the channel logo. It will also show up when you press the OK button from full screen TV




    Changing the resolution of the box
    This backup was made using the resolution for 720 tvs
    To change this menu. setup, video, basic settings
    go to mode and press right to change from 720 to what your tv supports

    [​IMG]








    Idiots Guide for adding your line with Filezilla

    On your Box Menu > Info> Network > Get your box IP address
    Open up FileZilla Host (top left ) Type in IP address Username root Leave others blank Press Quick connect
    Box should then connect to computer Left side computer, Right hand box
    [​IMG]
    For Nlines
    On right hand side locate usr Double click it Then Keys Double click It You should now see 3 files CCcam.cfg, Mg_cfg and Newcamd.list On Newcamd list Left click/right click Then click View/Edit (It may ask you what program you wish to view the file choose Notepad) You will see 2 samples of what your line should look like either edit your line details or Delete up to CWS = (space either side of =)
    Copy and past your line Less the N: in its place
    Disconnect from FileZilla By Clicking the X just under bookmarks top of page
    Press blue button on remote control >.Softcam press right Select soft cam panel Mgcamd 1.38 should show as default press green to restart
    For Clines
    Again usr/keys on box Your line goes Complete with the C in CCcam.cfg and start in Softcam panel press right to change cam
    Hope it helps




    Added info
    This image is a using the modified epgselection.py

    below is a list of the buttons on epg


    ch up and down to scroll pages

    Previous and next to change categories in epg tabs

    pressing tv while in epg brings up a bouquet list so you don't need to exit and press epg for the list of bouquets

    incuded

    auto bouquets setup
    Auto epg update set
    CrossEPG to hdd
    Includes mgcamd, cccam, openwebif, picture player,epg refresh and cachflush

    alternate channel numbers so SNP Picons can be used with cable

    Script to change the pics in the V-Skin menus daily

    Dsayers Importer to download the custommix on schedule scan

    Iptvplayer icons tweaked to remove the foreign plugins

    IPTV Bouquet Maker Availible via download plugins
